PowerDR Image Acquisition
PowerDR Digital X-ray Imaging System consists of PowerDR Console Application software, computer, display monitor, an X-ray imaging DR panel and an add-on of a web-based X-ray-PACS.

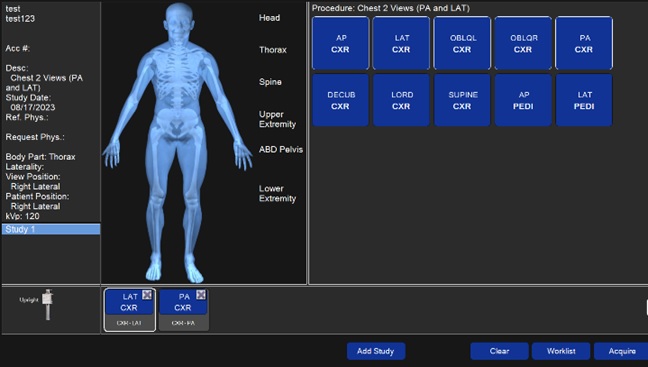

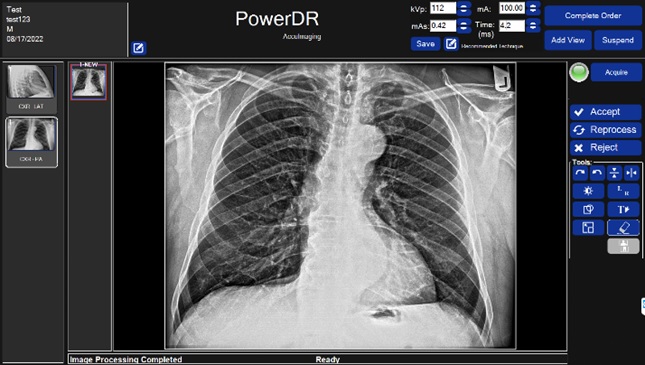

The PowerDR image acquisition software takes an imaging exam order as its input, interfaces to a CR/DR panel, acquires images, passes the acquired raw images to RADinfo SYSTEMS' AccuImaging image processing and produces a high-resolution diagnostic quality image. The image will be stored and managed on a local web-based PACS system and/or in RADinfo SYSTEMS' cloud for long-term storage and disaster recover purposes.


PowerDR Acquisition Advantages and Features

  • Easy to install out-of-the-box solution.
  • Seamless workflow to acquire, view, archive, DICOM send and burn CD/DVD.
  • Sophisticated AI based FDI 510K certificate image processing algorithm.
  • Acquires and displays full fidelity DICOM image.
  • Built-in HL7 interface with EHR, EMR, Practice Management (PM) systems.
  • Manufacture trained engineers and technical support teams provide single point support infrastructure.


PowerDR Image Acquisition Product Details:

Computer

PowerDR Control Workstation Hardware: Dell mini-tower workstation packaging with minimum of Intel Core i5 Processor, 16 GB RAM, 512 GB SSD and 1 TB SATA Data Drive, 1 TB USB Hard Drives for image archive, DVD+/-RW,Video Display Driver Card, Windows 11 Professional OS, 22" Dell Professional 1920x1080 Widescreen Color Flat Panel Display, Dell’s Hardware Warranty with NBD Onsite Parts Replacement Service.

DR Panel

  • PowerDR Image Acquisition software supports high-resolution CsI based direct digital x-ray panel manufactured by various DR panel vendors.
  • The most advanced CsI DR technology ensures excellence of image quality at low X-ray dose and improving operation safety.
  • Unique FAED (Full-Field Automatic Exposure Detection) offers a full-imaging-area coverage and low dose sensitivity for accountable operation in challenging situations.
  • High resolution performance with MTF ~30% @ 3 lp/mm and a limited resolution of < 4.16 lp/mm.
  • Ultra-high dynamic range (1400:1) with saturation dose of ~100 Gy ensures very detailed capture of both thin and thick objects.
  • High DQE (>7% with RQA5) at both low and high Kv ranges.
  • Fast preview mode delivers precise exposure control and premium image quality at minimum patient risk.
  • Support AEC.


Standard Warranty and Support

  • 5 year limited DR panel warranty.
  • 3 year Dell PC and display monitor warranty.
  • 1 year on PowerDR Acquisition software training and operational support.


PowerDR Acquisition and high-resolution DR panel technology provides the best quality images for medical professionals to use. Rather than using multiple digital image systems, medical need only ONE integrated solution can acquire, display, archive, burn CD\DVD and send DICOM image.
